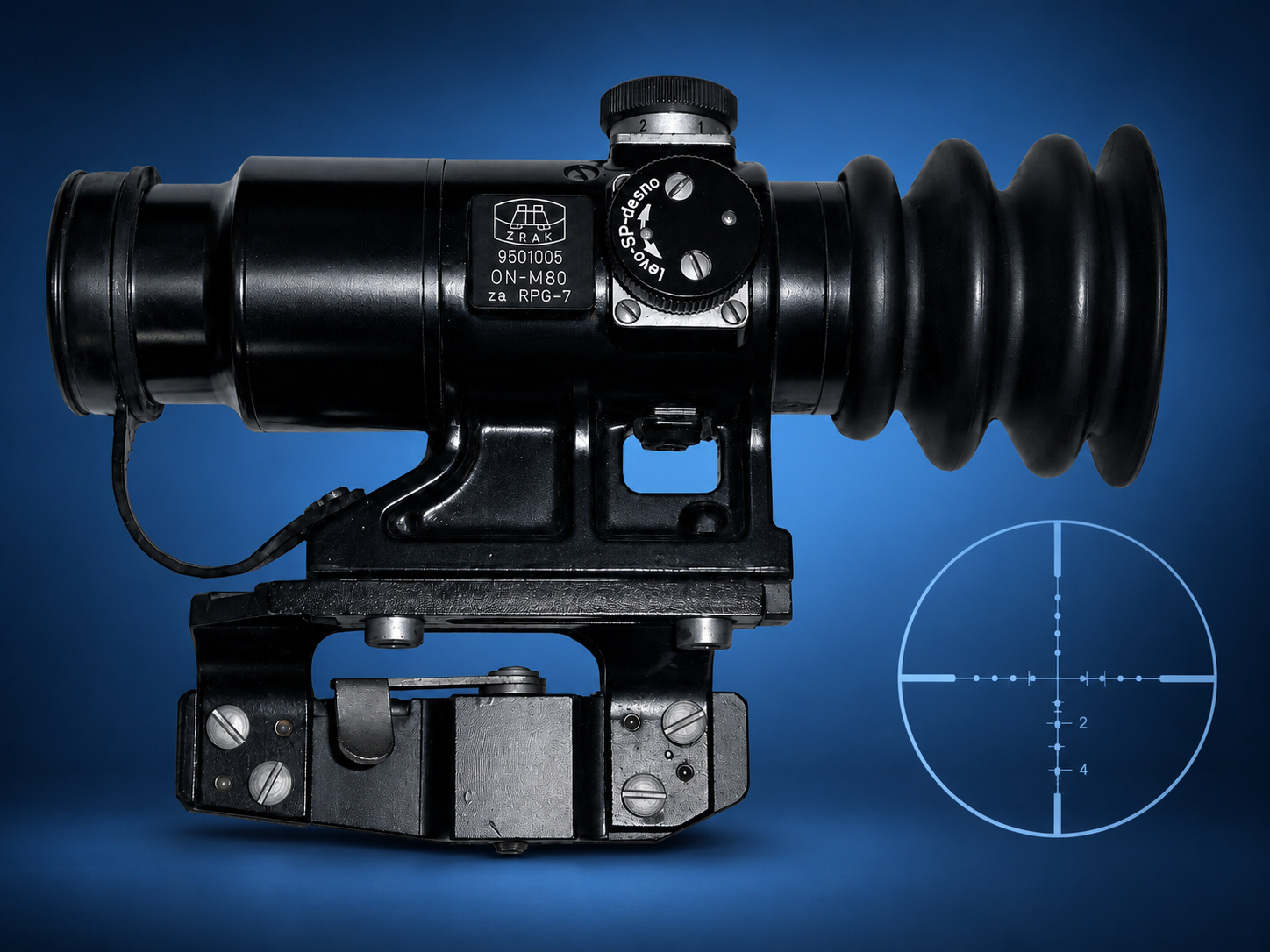

Optical device RPG-7 serves for direct shooting from rocket launchers RPG-7 and indirectly shooting to movable and immovable targets as to armored vehicles and fortified buildings at a distance up to 1300m.


Technical data:

Magnification 2.6x
Field of view 13°
Exit pupil diameter 4.8 mm
Exit pupil distance 12.5 mm
Dimensions 142 x 205 x 64
Ranging scale (on drum) 0 – 00 to 4 – 40
Ranging scale (on reticle) 100 to 500 m
Temperature operating range from – 40°C to +55°C
Mass 1 kg
