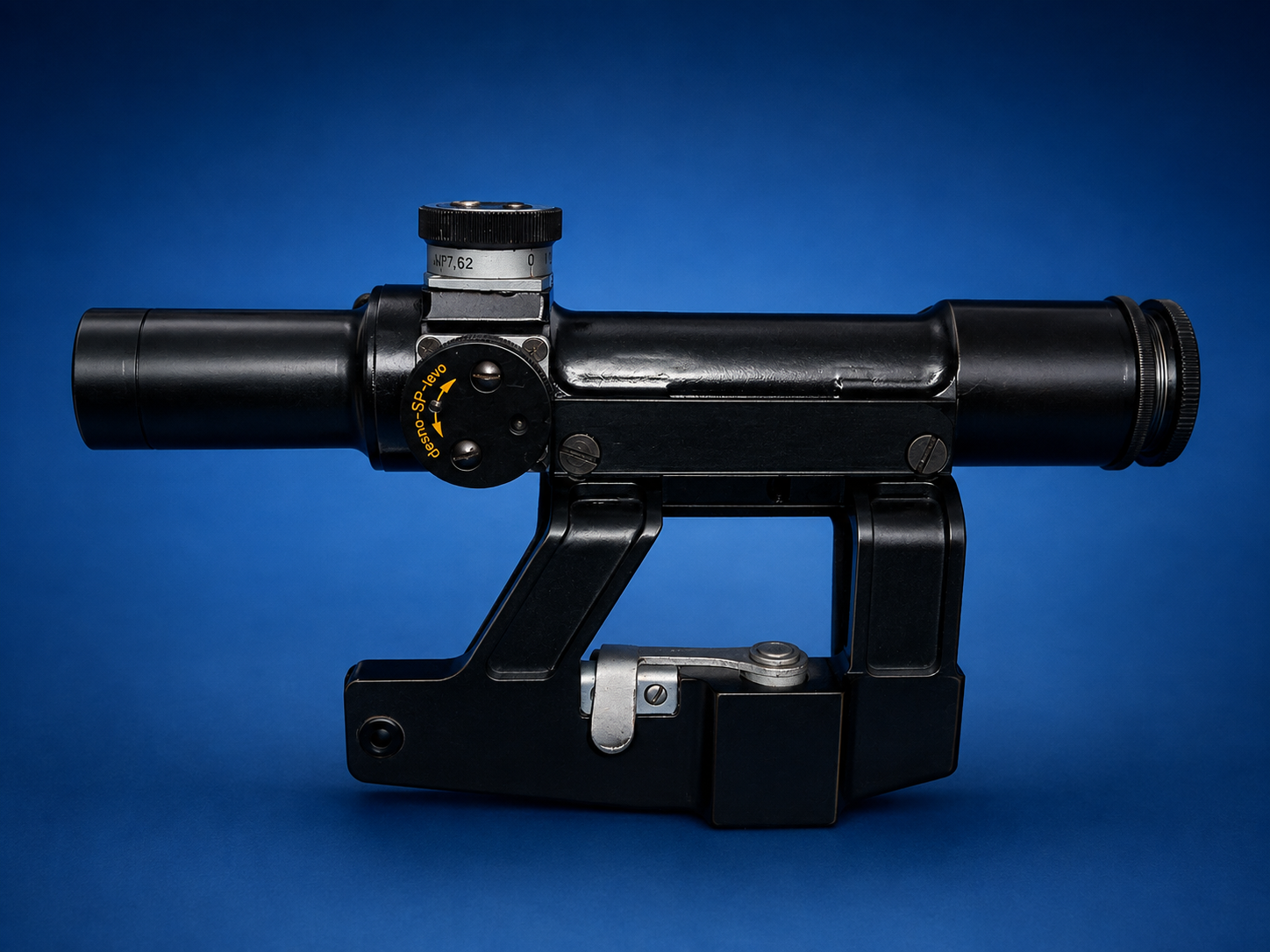

ON AP 7.62 M89

Optical sight ON-AP 7,62 M89 serves for sighting of single stationary, moving, open and camouflaged targets when firing with the automatic rifle M70 7.62 mm, M16A1 5,56mm and other infantry automatic rifles, both in day and night time conditions.


Technical data:

Magnification 2.3 x
Field of view
Exit pupil diameter 6 mm
Exit pupil distance 84 mm
Dioptric adjusment of eyepiece ± 2.5 dptr
Ranging scale (on drum) from 0 to 800 m
Temperature operating range from – 30° to + 55°C
Mass with a carrier 0.44 kg
