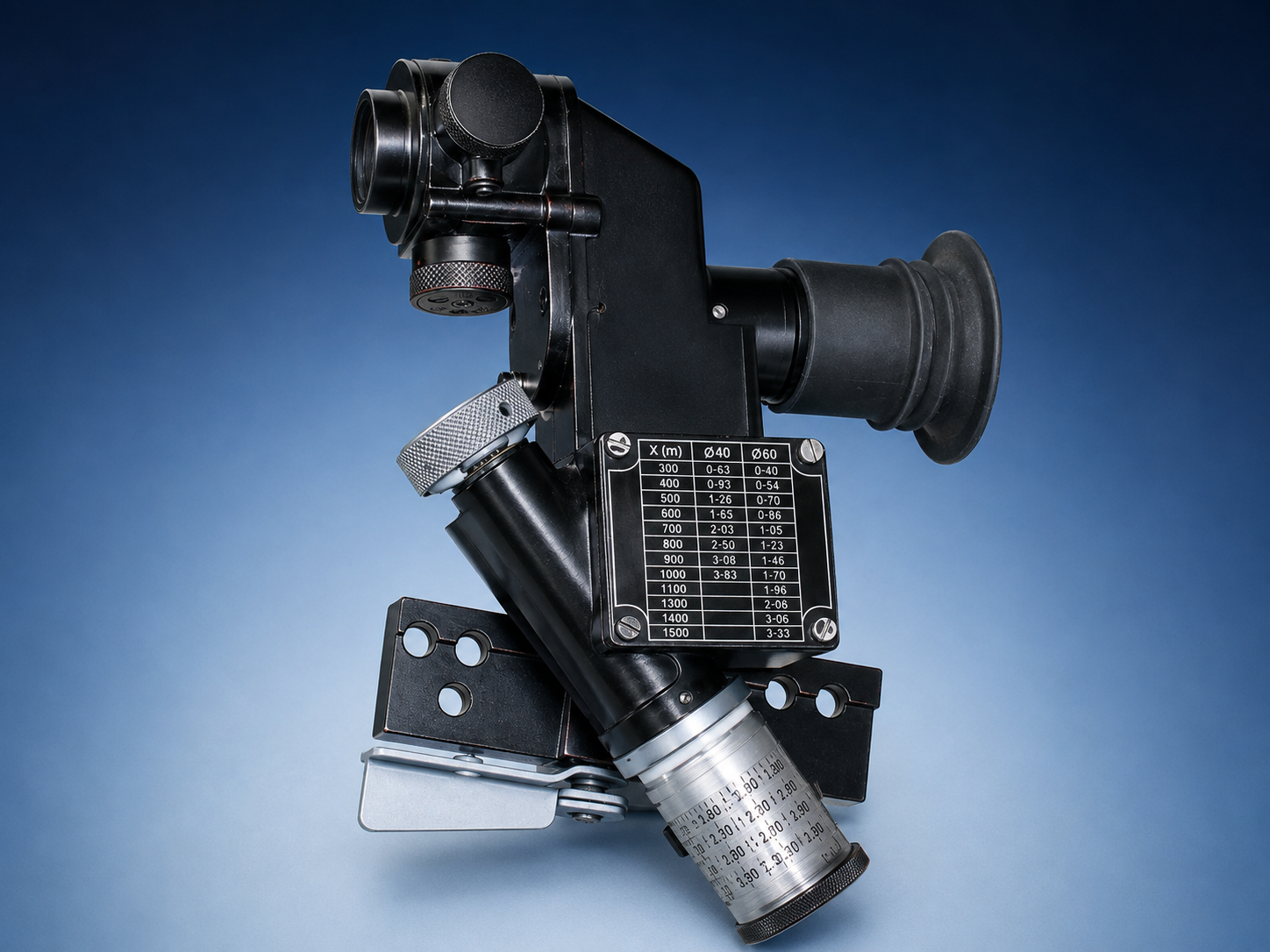

OS RPG – 7
The RPG-7 optical sight is designed for use with RPG-7 rocket launchers and enables accurate aiming during direct and indirect fire against both stationary and moving targets, including armored vehicles and fortified positions, at ranges of up to 1,300 metres.
Technical data:
| Magnification | 2.6x |
| Field of view | 13° |
| Exit pupil diameter | 4.8 mm |
| Exit pupil distance | 12.5 mm |
| Dimensions | 142 x 205 x 64 |
| Ranging scale (on drum) | 0 – 00 to 4 – 40 |
| Ranging scale (on reticle) | 100 to 500 m |
| Temperature operating range | from – 40°C to +55°C |
| Mass | 1 kg |
